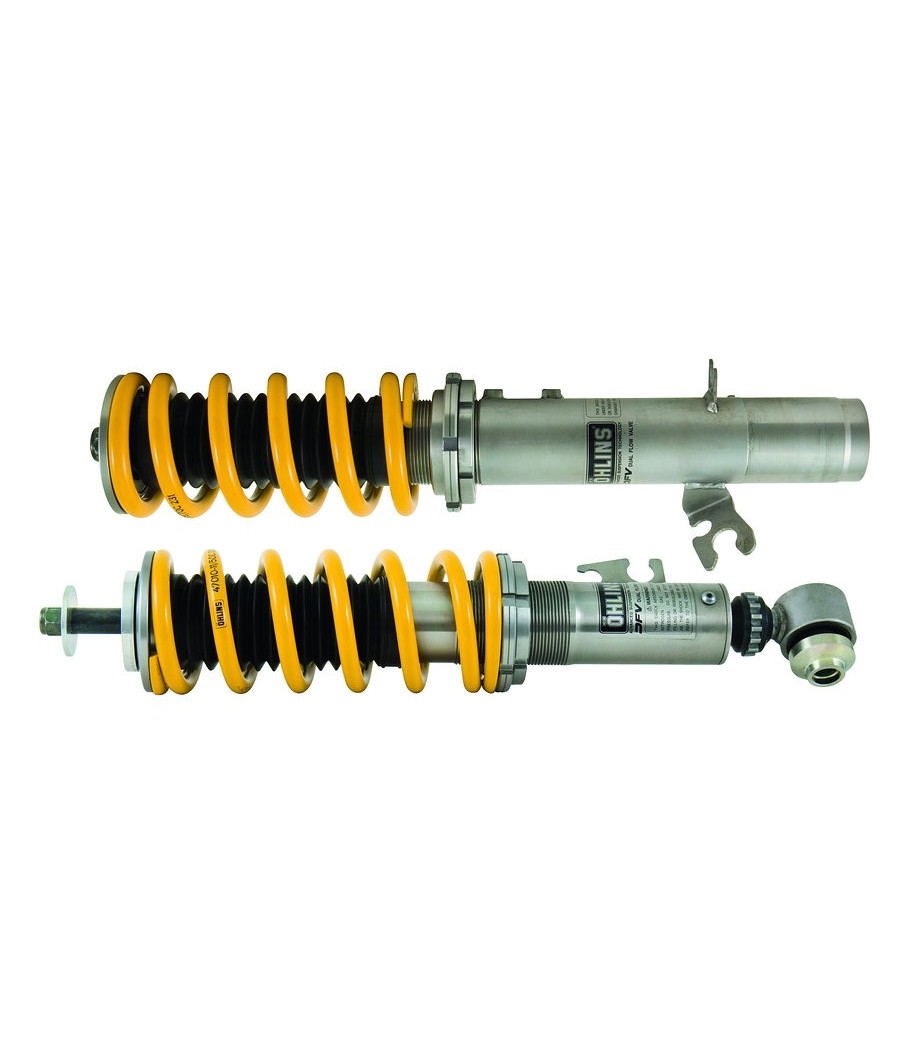

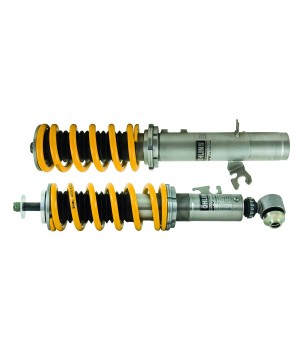

OHLINS BMS MI20S1 Road & Track (DFV) for MINI R56 (2007-2014)

OHLINS BMS MI20 Road & Track (DFV) for MINI R56 (2007-2014), set with springs

A more than 40 year long tradition of high-end racing commitments and state-of-the-art solutions within advanced suspension technology is now available for street cars all over the world. The focus has been clear from the very beginning – superior road handling without sacrificing comfort in your day-to-day transports. The time of compromises is over. All shocks have suffered through vast corrosion tests according to ISO 9227. The end result is a worldwide 2-year limited warranty on all of our products.

General Features:

• DFV technology (Dual Flow Valve)
• Individual height adjustment
• Rebuildable
• Corrosion salt spray tested (ISO 9227)
• 2 year warranty

Features Front:

• McPherson strut, upside down
• Compression and rebound damping with one adjuster
• Spring preload adjuster
• Separate ride height adjustment
• Approx. 8 - 28 mm lower than standard with recommended setup
• Spring rate 70 N/mm
• Use with original top mounts

Features Rear:

• Conventional shock absorber
• Compression and rebound damping with one adjuster
• Spring preload adjuster
• Separate ride height adjustment
• Approx. 5 - 30 mm lower than standard with recommended setup
• Spring rate 60 N/mm
• Use with original top mounts

Purchased Parts Package:

• Coil over kit incl. springs and mounting parts
• C-Spanner (for spring preload adjustment)
• Owners manual and mounting instruction
• Sticker set

Additional Options:

Aluminum top mounts, part no: G61058-01 (not included, TÜV approval in combination with Öhlins Road & Track coil over suspension kit BMS MI20)

Fits the following vehicles

• MINI Cooper, Clubman, Cabrio, Coupé, Roadster (R55, R56, R57, R58, R59), 2007 – 2014
